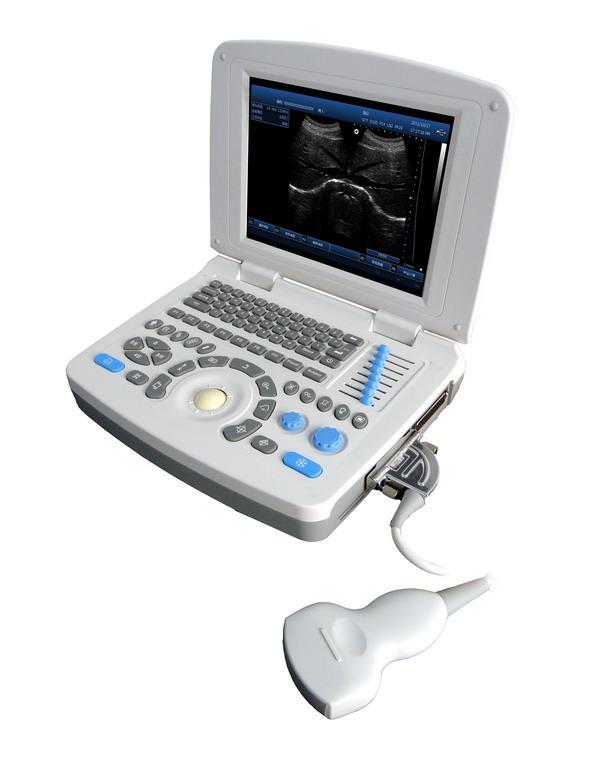

KR-8288ZLaptop PC Based Ultrasound Scanner

Feature:

·Full digital andclear image
·PC based abundant and powerful functions
·Complete application software packages
·10 inch non-interlaced LCD monitor
·Broadband Multi-frequency probes
·Large volume hardisk storage, USB storage
·RJ-45 ports for DICOM network transmission
·Compatible with laser/inkjet printers
·2 active probe sockets
·3D imaging function(option)
·Outside battery(option)


Specification:

-D-Maximum Scanning Depth： 250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop：1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, ZOOM;
Real-time Zoom on B mode
-Image processing: Pre-processing, after-processing, dynamic range, frame rate,line average, edge; enhancement, Black/White inversion; Gray scaleadjustment,  contrast, brightness, γ revision.
-Gain: gain: adjustable between 0-100dB; Time gain control (TGC): 8 segmentadjustment, B, M adjustment separately.
-Monitor: 10 inch LCD screen
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
-Measurement and calculation(human):
 B mode: distance, circumstance, area, volume, angle, ratio, stenosis,profile, histogram;
 M mode: heart rate, time, distance, slope and stenosis;
 Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
 Obstetric: gestation age, fetal weight, AFI;
 Cardiology: LV, LV function, LVPW, RVAWT;
 Urology: transition zone volume, bladder volume, RUV,  prostate, kidney;
 Small parts: optic, thyroid, jaw and face.
-Dimension: 300×230×60mm
-Probe Connector：2
-Weight: Around 2.3kg
