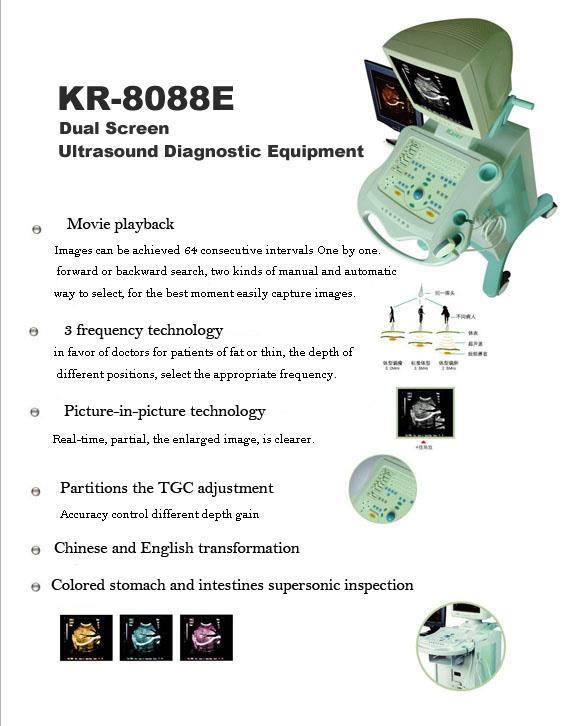

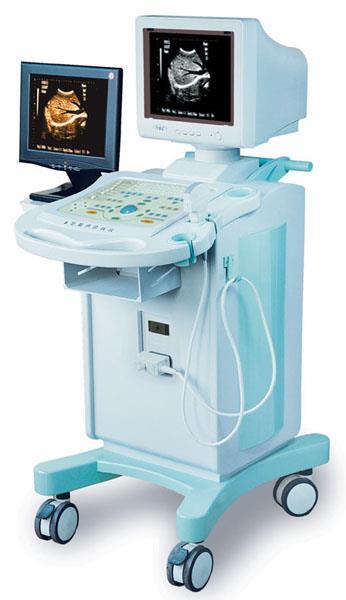

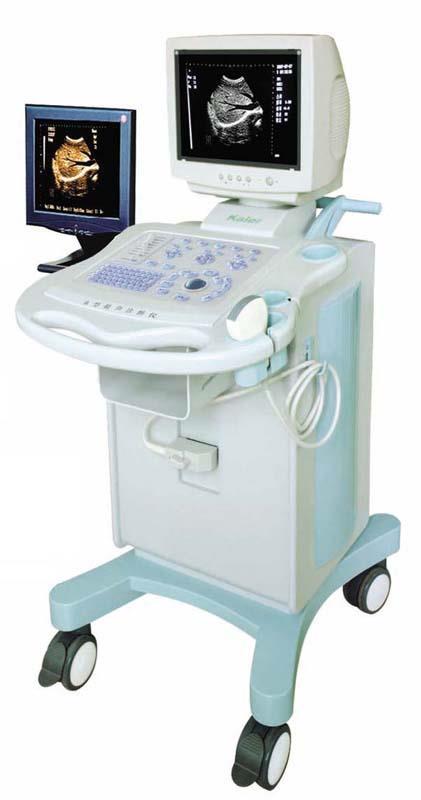

KR-8088E / KR-8088E Plus Dual Screen Ultrasound Diagnostic Equipment

 Technical features

Standard Probe:  2.0-5.0MHz multi-frequency convex probe

Display: 4B, B, B+B, B+M, M

Max depth: 185-240mm optional

Gray scales: 256

Resolution: landscape orientation ≤ 2mm,
                    Portrait ≤1mm,
                    Geometric position precision ≤5%,
                    Near field ≤4mm

Scanning line: 512/frame, frequency: 30 frames / second

Focusing: 4 focuses (dynamic variable aperture)

STC adjustment: 8 segment TGC

Image processing: Dynamic filter, dynamic frequency scanning, L/R, UP/DOWN, B/W turning, edge enhance

Zoom in: X1.0, x1.2, x1.5, x2.0 Zoom in partly

PIP: display PIP can show the image clearer

Body marks: 32

Measurement:   Distance, circuit, size, volume, BPD, GS, CRL, FL, AC, HC

Connectors: VGA, PAL-D, Video printer port.

Dual Monitor: 14 inch B/W monitor (SVGA non-interlaced ), 15 inch color LCD.

Pseudo color: Connection with normal monitor is available

Cine loop: 256 frames, automatic or manual

Image memory: ≥32

Power: AC220 ± 22V, 50Hz±1Hz   /   AC110 ±11V, 60Hz ±1Hz
