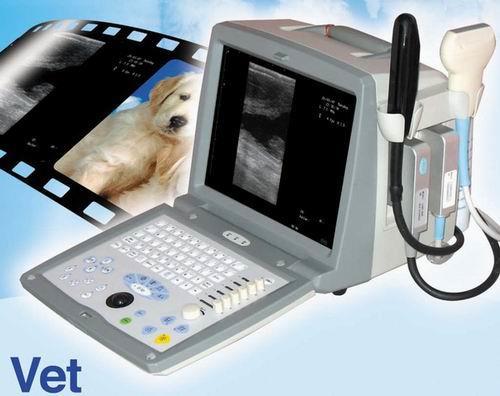

KR-820 VET portable Ultrasound Diagnostic Device

Extensive software
* Extensive software packages including Abdomen, OB, Cardiology, Tendon, Peripheral blood vessel, Superficial tissue and fetus age table and reports for sheep, swine, bovine, equine, cat and llama
* Different OB formula and users defined OB formula available for clinic diagnosis
* In single B mode, enlarge the selected area by pressing down the key Zoom in. The enlarged area will be automatically optimized or have Picture-in-Picture display
* Cineloop: Hundreds of frame, and dozens of image could be permanently stored
* Software upgradeable. Freeze or defreeze image by pressing down footswitch

Technicial specification

10” LCD high resolution monitor

B, B/B, B/M, M display mode

256 frames cine loop memory

Gray Scales: 256

Body Marks: 38

Max. Scanning Depth: 250mm

Image Processing: Pre-processing(Frame correlation, Line correlation),

Post-processing (Interpolation, 8-γ correction, Edge enhancement), Histogram, Image Left/Right conversion, Up/Down conversion, Black/White conversion, Image Depth scroll, etc.

Image Storage: 16-image permanent storage, USB flash disk connectible

TGC: 6-segment TGC and Overall Gain control.

Zoom: Partial zoom and picture in picture display

Measurement: Distance, Area/perimeter, Volume (ellipse method), Angle, Heart rate, Time, EF slope, Fetal age, Weight and EDCB

2 probe connectors for convex probe, linear probe, micro-convex probe and rectal linear probe

Laser printer and Video printer applicable to print out image and reports for lowering down hospital's cost

USB ports available to transfer image to computer. USB flash disk connectible for sharing information

Biopsy acupuncture

External device ports
* USB port for image storage and software update
* Video printer and laser printer parts
* Footswitch

Dual power supply system
*AC power supply
*Built-in Lithium battery power supply

* Standard Configuration
Main unit (1pc), Electronic convex array probe (1pc)

* Optional Parts:
Multi-frequency electronic rectal linear probe
Multi-frequency electronic linear array probe
Multi-frequency electronic micro-convex array probe
Multi-frequency electronic convex transvaginal probe

Dimension: 287 mm(W)× 243 mm(H)× 216mm(D)
Net Weight: Approx . 3 Kg
