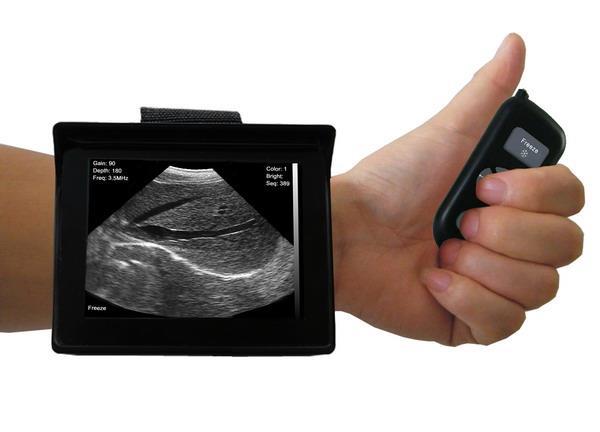

KR-8288VVeterinary Wrist Ultrasound Scanner

KR-8288V Veterinary Wrist UltrasoundScanner is consist by host, probe, external battery, hand type keyboard. Thehost is only 200g ought is the lightest ultrasound scanner in the world.

ProductFeatures:
-Small portable, easy to carry,
-Hand type keyboard, facilitate single hand operation;
-Concise function, simple to operation;
-Clear image, can be used to judgment pregnant, measuring fat;
-With probe frequency conversion function, adapted to different inspectiondemand;
-Battery can change easy, and for power dissipation is small so battery workingtime long;
-Large capacity SD card for store image (optional);
-With pseudo color display function;
-Screen with a visor, better for work under sun.

Specifications:
-Scanning system: sector sweep;
-Probe frequency: 3.5MHz/5MHz probe and can variable frequency;
-Scanning depth: ≥180mm, 70mm/110mm/130mm/150mm/192mm adjustable;
-Screen: 3.5 inches;
-Display mode: B
-Image gray scale: 256 level
-Pseudo color: 8 type
-Image store: 512 frame(by SD card)
-Measure: distance;
-Input power: dc 5V (by external battery input)
-Power consumption: 7W (probe run) /2.5W (probe stop)
-Battery work time: 10 hours
-Size: 92mm * 73mm * 42mm
-Weight: host 200g, probe 250g, battery 100g
-Probe Connector:：1

StandardConfiguration:
-Main Host  1 Unit
-3.5MHz/5.0MHz Mechanical Sector Selectable  1 Pc
-Hand type keyboard  1 Pc
-External Battery and charger 1 Set
-Arm bag (use for put battery and probe)  1 Pc
-Pocket (use for put host, gel, razor)  1 Pc
-SD Store Card   1 Pc
