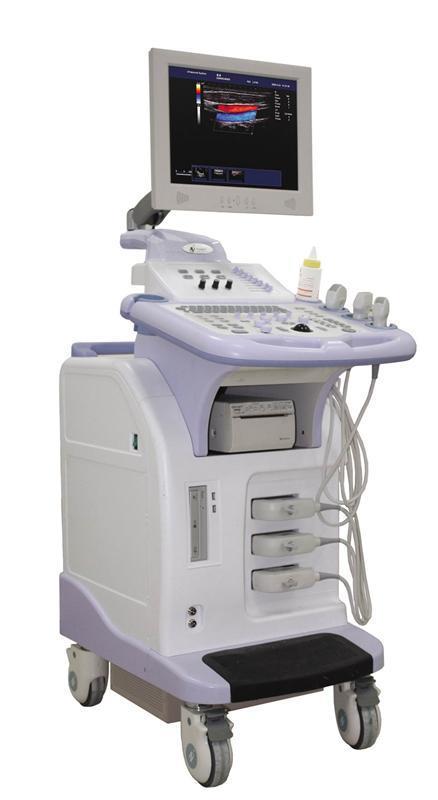

KR-5000 Full Digital Color Doppler Ultrasound System

 PC-based full digital color doppler, offersexcellent 2D images with THI, as well as complete Doppler image and datamanagement.

Specification
 Display mode: B&W mode : B, 2B, B/M, 4B
Color Doppler mode : CFM, PD, PW
Triplex :Real-time simultaneous 2D & Doppler & CFM
Duplex :Real-time simultaneous 2D & Doppler
Gray scale:256
Display:15” LCDmonitor
Transducer frequency:2-10MHz
Digital technology :Dynamic Receiving Focusing(DRF)
Scanning depth:240mm

Imaging Processing

Pre-processing:  8-segment TGC
                         IP(Image Processing)
                         Gain(B&W, Color)
                         PRF
                         Dynamic range
                         Image enhancement
                         Frame average
                         Scanning angle
                         High resolution/High frame rate
                         Acoustic power
Post-processing: Gray map
                           Black/white reverse
                           Left/right reverse
                           Up/down reverse

Functions
Cine-loop: 256 frame cine loop memory
Storage media: 250G massiveimage-storage capacity, USB
Zoom: Pan zoom

Measurement & Calculations
B mode: distance, circumference, area, volume, angle, fetal growth curve
M mode: distance, time, velocity, heart rate
Doppler Mode: Vs, Vd, RI, PI, SD
Software packages: abdomen, gynecology, obstetrics, cardiology, small parts,urology

Others
Transducer connector:3 active transducer connector ports
Peripheral ports : Video, S-video, VGA, USB ports
Power supply:100~240VAC±10%,50Hz/60Hz

Standard configurations:
Portable Main unit
15” LCD monitor
THI(Tissue Harmonic Imaging)
Three transducer connectors
250G image-storage capacity
Four USB ports
Measurement & calculation software packages

3.5Mhz Electronic convex probe
7.5Mhz Electronic linear probe

 Optionalconfigurations:
5.0Mhz Electronic micro-convex probe
6.0Mhz Electronic trans-vaginal probe
